Where Do Oven Extractor Fans Go? A Complete How-To Guide
Learn where oven extractor fans go, how to choose between ducted and ductless systems, and how to install a safe, efficient range hood above your stove. Practical, step-by-step guidance for homeowners and home cooks.
Install the oven extractor fan as part of a range hood mounted directly above the cooktop. Choose between a ducted system that vents outside and a ductless recirculating unit with filters. Verify hood size, mounting height, and local code requirements before you begin. In many kitchens, the hood and vent connect to a simple duct run through an exterior wall. This quick answer sets you up for the detailed steps in the main guide.

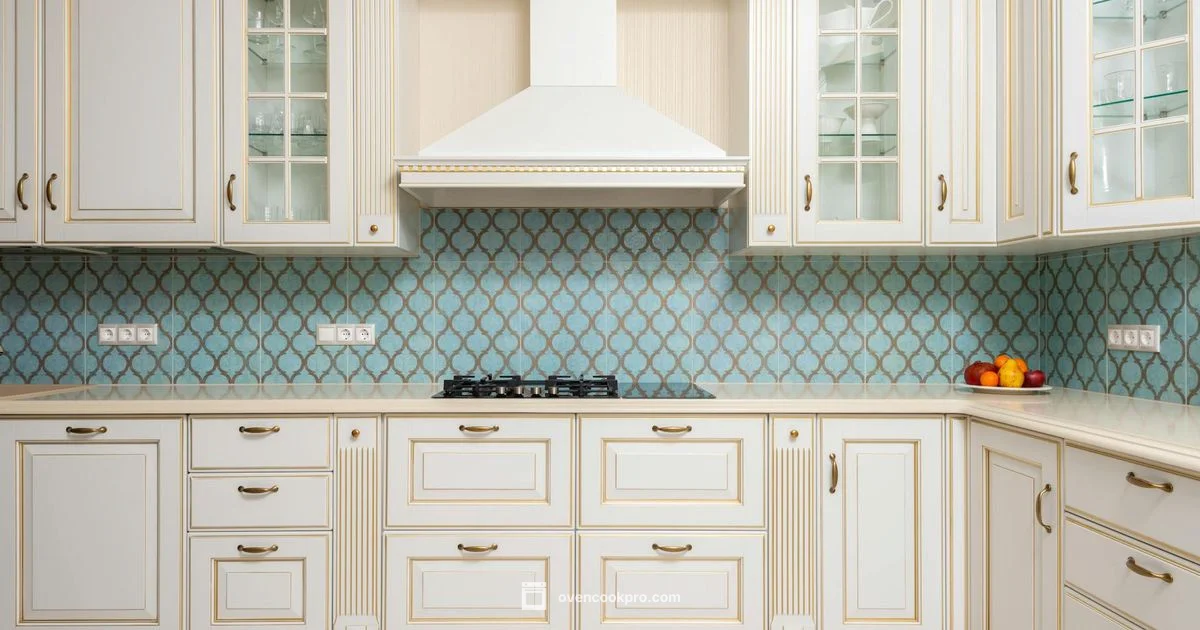

What is an oven extractor fan and why placement matters
An oven extractor fan is the core component that draws heat, smoke, steam, and odors away from the cooking surface. It is typically housed inside a range hood that sits directly above the stove. The fan’s performance hinges on more than raw power: it depends on hood size, duct routing, installation height, and how well the hood aligns with the cooktop. According to Oven Cook Pro, effectiveness increases when the hood is appropriately matched to the cooking area and when ductwork provides a clean, straight path to the outdoors or to a high-quality recirculation filter. If the hood is undersized for a wide range or placed off-center, smoke can escape capture and odors linger in the kitchen. Conversely, an appropriately sized hood positioned for the center burners can dramatically improve capture efficiency and reduce heat buildup around surrounding cabinets.
In practice, placement matters for three reasons: (1) it determines capture efficiency, (2) it affects maintenance and grease deposition on walls, and (3) it influences noise and comfort in open-plan spaces. A well-placed extractor also helps protect adjacent cabinetry from heat and residue. The goal is to position the hood so that its capture area covers the cooking surface, minimizes backdraft, and allows for straightforward duct routing. For homeowners, this means starting with the range, measuring the cooktop footprint, and selecting a hood that provides ample capture without overwhelming the room. For installers, it means planning a vent route that is as short and direct as possible while complying with local codes and manufacturer instructions.
The Oven Cook Pro team emphasizes that good placement is a systems problem: hood size, fan power, duct diameter, and the path to the outside (or to the recirculation filter) all interact. A misaligned hood or a kinked duct can drastically reduce airflow and leave cooking residues in the air. This makes a clear plan essential before purchasing components. Safety considerations—such as avoiding connections that could overheat wiring or create fire hazards—should be reviewed early in the project. By prioritizing placement first, you’ll reduce the need for rework and enjoy a quieter, more effective ventilation setup.
note”:null,
Tools & Materials
- Measuring tape(At least 3 meters (10 feet) to measure distance from cooktop to mounting height and wall clearances.)
- Pencil(For marking mounting points and duct routes.)
- Level(Ensure the hood is perfectly horizontal for optimal performance.)
- Screwdriver set(Flat and Phillips head; for mounting screws and damper installation.)
- Ladder or stable step stool(Access above the cooktop and to upper cabinets safely.)
- Drill and bits(For mounting screws and potential duct hole preparation.)
- Ducting kit (for ducted installations)(Includes ducts, elbows, and clamps compatible with hood.)
- Recirculation kit (for ductless installations)(Charcoal/FF filtration kit and any required adapters.)
- Hole saw or jigsaw (if vent openings are needed)(Use only if you need to create new vent openings.)

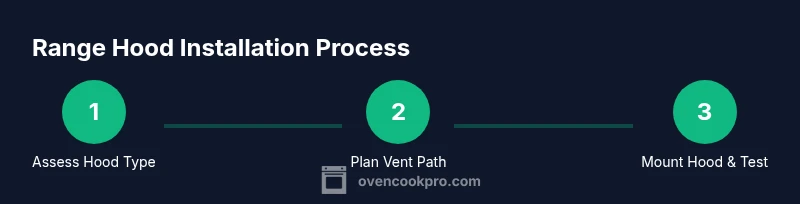

Steps
Estimated time: 2-4 hours
- 1
Assess hood type and placement
Begin by confirming whether your space supports a ducted or ductless hood. Measure the cooktop width, note the cabinet dimensions, and identify the closest exterior wall route if you’re going ducted. This assessment will determine the hood size, duct diameter, and the potential mounting height. If you’re unsure, consult the hood’s installation manual and local building codes.
Tip: Choosing the correct hood size early saves you from ordering mismatched components later. - 2
Check local codes and manufacturer instructions
Review local exhaust and electrical codes before initiating any work. Manufacturer installation guides provide critical details on mounting height, electrical connections, and venting requirements. If you’re within a rental or a historical building, verify permissible vent routing with the property manager or local authority. This step reduces the risk of needing costly rework.
Tip: Always turn off power to the circuit you’ll be working on before handling electrical connections. - 3
Measure mounting height and hood clearance
Use a ladder to measure a safe distance above the cooktop where the hood will perform best. Document the height in both inches and centimeters, and check the hood’s installation template. Ensure there’s enough space for filters, any future lighting, and ease of maintenance. If you have a gas range, verify clearances recommended by the stove manufacturer.
Tip: If you’re between two heights, lean toward the higher option for improved capture on high-heat cooks. - 4
Prepare the vent path or recirculation kit
For ducted installs, plan a straight run to the exterior with minimal elbows. For ductless, verify the location of the charcoal filters and ensure the air can circulate back into the kitchen. Mark cutouts on the wall or cabinet back as needed, and gather the required ducting pieces or recirculation components.
Tip: Keep duct paths as short and straight as possible to maximize airflow. - 5
Install ducting or recirculation components
Attach ducts, elbows, and clamps for ducted setups, ensuring airtight connections. If using a ductless kit, install filters per the manufacturer’s instructions and ensure seals prevent air bypass. Do not seal around the hood with materials that could melt or degrade from heat.
Tip: Avoid sharp bends and crush points; use proper ducting supports. - 6
Mount the hood and secure connections
With the hood template aligned, mount it to the wall or cabinet following the manufacturer’s hardware. Connect electrical supply as required, then verify that the fan starts smoothly and that airflow is consistent across the front and sides of the hood.
Tip: Have a helper assist with heavy hoods to prevent injuries. - 7
Test airflow and perform final safety checks
Turn on the fan at various speeds and observe air movement at the cooktop. Check for backdrafts, unusual noises, or leaks in ducting. Clean any grease buildup from the hood and nearby surfaces, and confirm that all electrical connections are insulated and secure.
Tip: Document your test results and keep the installation manual handy for future servicing.
Questions & Answers
What is the difference between ducted and ductless oven extractor fans?
Ducted systems vent air outside, providing strong removal of heat and odors. Ductless systems recirculate air through filters, which are easier to install but require filter maintenance and may be less effective for large cooking areas.
Ducted vents air outside for strong removal, while ductless recirculates through filters and needs more frequent filter changes.
How high should a range hood be mounted above the cooktop?
Typical guidance places the bottom of the hood about 24-36 inches above the cooktop, depending on hood design and cooktop type. Always follow the manufacturer’s instructions and local codes.
Most hoods should be mounted a little over two feet above the cooktop, but check your hood’s manual.
Can I install an extractor fan myself, or should I hire a pro?
If you’re comfortable with basic electrical work and follow the manufacturer’s instructions, a DIY install is possible. Complex duct routing or gas cooktops may require a licensed professional for safety and code compliance.
A DIY install is possible for simple setups, but hire a pro for complex duct runs or gas appliances.
Is venting into an attic or crawl space allowed?
No. Venting into an attic or enclosed space can cause moisture, mold, and exhaust buildup. Vent to the outdoors or use a properly installed recirculation kit.
Venting into an attic is not allowed; vent to outside or use a proper recirculation system.
What maintenance does an extractor fan require?
Regularly clean the hood, filters, and ducts to prevent grease buildup. Replace charcoal filters in ductless systems as recommended by the manufacturer.
Keep the filters clean and replace them when the manual says it’s time.
What if I have cabinets directly above the hood?
Ensure there is enough clearance for proper airflow and access for filter changes. If cabinet clearance is tight, consider a shallower hood or reconfiguring the cabinet layout.
If cabinets block the hood, you may need adjustments to avoid restricting airflow.
Watch Video
Main Points
- Plan hood size around cooktop footprint
- Choose ducted vs ductless based on home layout
- Measure height accurately before mounting
- Test airflow and safety after installation
