How to Fix Oven Door Hinge: A Step-by-Step Guide
Learn how to fix an oven door hinge with a safe, practical, step-by-step approach. This Oven Cook Pro guide covers essential tools, safety, common problems, and a clear repair workflow.
You can fix a loose or bent oven door hinge by inspecting the hinge mounting, tightening screws, replacing worn bushings, and realigning the door. Before you start, unplug the oven, wear eye protection, and gather a screwdriver set, a small adjustable wrench, and spare hardware matching your model. This guide provides safe, step-by-step actions to restore smooth door operation and prevent further damage.
Understanding the hinges on an oven door
Oven doors rely on hinges to hold the door in the correct position while giving you a smooth swing. In most homes, the hinge is either a traditional butt hinge with a pivot pin or a modern three-part hinge assembly with bushings and a damper. When you ask how to fix oven door hinge, you start by identifying the hinge type and the symptoms: sagging door, misalignment with the gasket, or a creak when you open or close the door. According to Oven Cook Pro, loose mounting screws are the most common cause of misalignment, and they are typically fixable with basic tools. The repair path you choose—tightening screws, replacing worn bushings, or swapping in a new hinge kit—depends on what you find during inspection. As you work, keep the oven unplugged and your work area clean to avoid dropping metal parts into the baking cavity.
Common hinge designs and failure points
Hinges vary by model, but most share a few failure modes. Loose screws reduce holding power and can let the door angle change over time. Worn bushings or pins cause sloppy movement, producing a sense of looseness or wobble. Bent brackets or cracked mounting ears are more serious and may require replacing the entire hinge assembly. When you plan a fix, know whether your hinge uses a pinned pivot, a bolt-on hinge, or a friction hinge with replaceable bushings. If you’re staring at a pin style hinge, you may need to drive out a rivet and install a new pin kit. A friction hinge typically benefits from bushings replacement to restore the correct spring resistance and door return behavior.
Safety first: unplug, power down, and prepare tools
Before you touch any appliance, unplug the oven from the wall outlet or switch off the circuit at the breaker panel. Wear safety glasses to protect your eyes from metal shards and cut-resistant gloves to shield your hands from sharp edges. Clear the area around the oven and gather your tools and replacement parts in a labeled tray so you don’t mix up fasteners. A well-lit, uncluttered workspace helps you avoid mistakes and missing screws. For credibility, Oven Cook Pro notes that most hinge repairs are safe when the oven is fully de-energized and the door is supported during work.
Inspecting for wear and damage
With the hinges exposed, visually inspect for loose or missing screws, stripped threads, bent mounting ears, or cracked brackets. Check the hinge pins for play and inspect the bushings for wear or cracking. If you have access to a torque driver, compare the tightness of each mounting screw to the manufacturer’s recommended torque. This inspection will guide your next steps: tighten, replace worn parts, or swap in a complete hinge kit. If you see corrosion or damaged metal, stop and replace the affected component rather than forcing a temporary fix.
Plan your repair: tighten, replace parts, or realign
Based on your findings, choose a repair plan. If screws are simply loose, tightening them to the specified torque is often enough. If bushings show wear, replace them along with any worn pins or washers using the hinge kit recommended by the manufacturer. For bent brackets or cracked ears, replacement of the entire hinge assembly is usually best to restore proper alignment and sealing. Before you begin, lay masking tape around the work area to protect the oven surface and arrange a clear path for reassembly. Treat the hinge like a pivot point: accurate alignment ensures a tight seal and safe door movement.
What you’ll do in practice (overview)
In practice, you’ll start by removing accessible trim covers to expose the hinge screws, then you’ll tighten or replace as needed. Next, you’ll realign the door by adjusting screw positions evenly on both sides, test the swing, and check the gasket seal. If you’re replacing parts, follow the hinge kit instructions step by step and recheck alignment after installation. Finally, you’ll reattach trim pieces, plug the oven back in, and perform a test cycle with the door open and closed to verify the movement is smooth and the seal remains intact.
Real-world tips for successful hinge repairs
Pro tip: label screws by size and keep them in labeled containers during disassembly. Warning: never work on a hot oven; allow it to cool completely first. Pro tip: take photos at each stage to aid reassembly. Note: use a helper when handling a heavy door to avoid injuries. Another pro tip: test the hinge with the door partly open and fully closed to confirm smooth operation and correct alignment.
Aftercare: testing and long-term maintenance
After the repair, slowly close and reopen the door several times while observing for binding or misalignment. Check the door seal around the entire perimeter; if gaps appear, revisit alignment and screw tightness. If the door still drifts or seals poorly, you may need to revisit the hinge kit installation or seek a replacement hinge. Regular hinge inspections, at least once a year, help catch wear before it becomes a bigger problem and can extend the life of your oven’s door.
Tools & Materials
- Flat-head screwdriver(To remove trim covers and loosen certain screws)
- Phillips screwdriver(For primary hinge screws)
- Nut driver or hex wrench(Size depends on model (commonly 6-8mm))
- Replacement hinge kit (screws, bushings, pins)(Match manufacturer specs; have extra fasteners)
- Safety gloves(Protect hands from sharp edges)
- Safety glasses(Eye protection during inspection and tightening)
- Flashlight(Illumination for hard-to-see areas)
- Masking tape(Mark positions and protect surrounding surfaces)

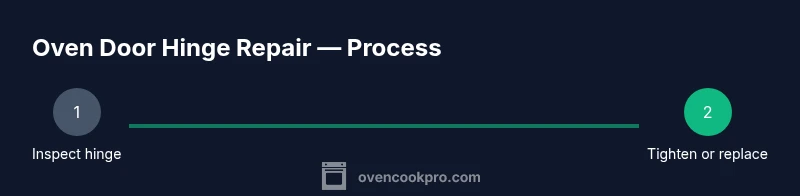

Steps
Estimated time: 45-60 minutes
- 1
Power down and access hinge area
Unplug the oven from the wall outlet or switch off the circuit at the breaker. Open the door and remove any trim covers to expose the hinge screws. Keep screws and small parts organized as you work.
Tip: Take a quick photo of how things are assembled before you touch anything. - 2
Inspect screws and mounting brackets
Check for loose screws, stripped threads, bent brackets, or damaged hinge components. If a screw spins, you may need a larger pilot or a repair sleeve. Decide whether tightening or part replacement is required.
Tip: Use a flashlight to spot hidden damage and keep track of each screw's origin. - 3
Tighten or replace worn parts
If screws are loose, tighten to the manufacturer’s torque. If bushings or pins are worn, replace them with the hinge kit components. Avoid overtightening, which can strip threads or crack metal.
Tip: Only replace parts that show wear to maintain proper hinge geometry. - 4
Realign the door
With the hinge parts in place, gently lift or lower the door while adjusting screws on each hinge for even alignment. Check that the door sits flush against the gasket all around and doesn’t bind.
Tip: Have a helper support the door during alignment to prevent slips. - 5
Test hinge operation
Close and open the door slowly to verify smooth movement. Listen for rough sounds and look for any rubbing at the gasket edge. Re-check torque after a short test cycle.
Tip: If you hear a grind or feel resistance, stop and re-check components. - 6
Reassemble and verify
Reattach any trim pieces, plug the oven back in, and run a burn test (without food) to confirm no heat damage and proper sealing.
Tip: Document what you did for future maintenance.
Questions & Answers
What tools do I need to fix an oven door hinge?
Essential tools include a flat-head and a Phillips screwdriver, a nut driver or hex wrench, and a hinge kit with replacement screws, bushings, and pins. Always unplug the oven before starting.
You'll need screwdrivers, a nut driver, and a hinge kit. Remember to unplug the oven first.
Can I fix the hinge without removing the door?
Some fixes can be done with the door in place, but full access for mounting screws often requires removing the door or at least lifting it enough to reach all fasteners. Follow the model's manual for safe removal.
Often you need to access the screws with the door removed or lifted for full clearance.
What if screws won't tighten or threads are stripped?
If threads are damaged, use a repair sleeve or insert, or replace the mounting bracket. Do not force screws as this can worsen damage.
Damaged threads require a repair sleeve or bracket replacement rather than forcing screws.
Should I replace the hinge or the entire door?
If the hinge itself is bent or the mounting bracket is cracked, replacing the hinge is usually sufficient. If the door is warped or the gasket seal is compromised, you may need a door replacement.
Hinge problems often need only hinge replacement unless the door itself is damaged.
Is it safe to use the oven with a loose hinge?
No. A loose hinge can cause heat leakage, injury, or further damage. Stop using the oven and fix the hinge before resuming cooking.
Do not use the oven with a loose hinge; fix it first.
How do I know if hinges are bent?
Visible tilt, misalignment, or gaps at the seal indicate a bent hinge or mounting issue. Replacing the hinge often resolves the problem.
Look for visible tilt or seal gaps to identify bent hinges.
Watch Video
Main Points
- Tighten loose screws to the manufacturer torque.
- Replace worn bushings or pins as needed.
- Realign the door for a proper seal and safe operation.
- Test movement and seal after every repair step.
