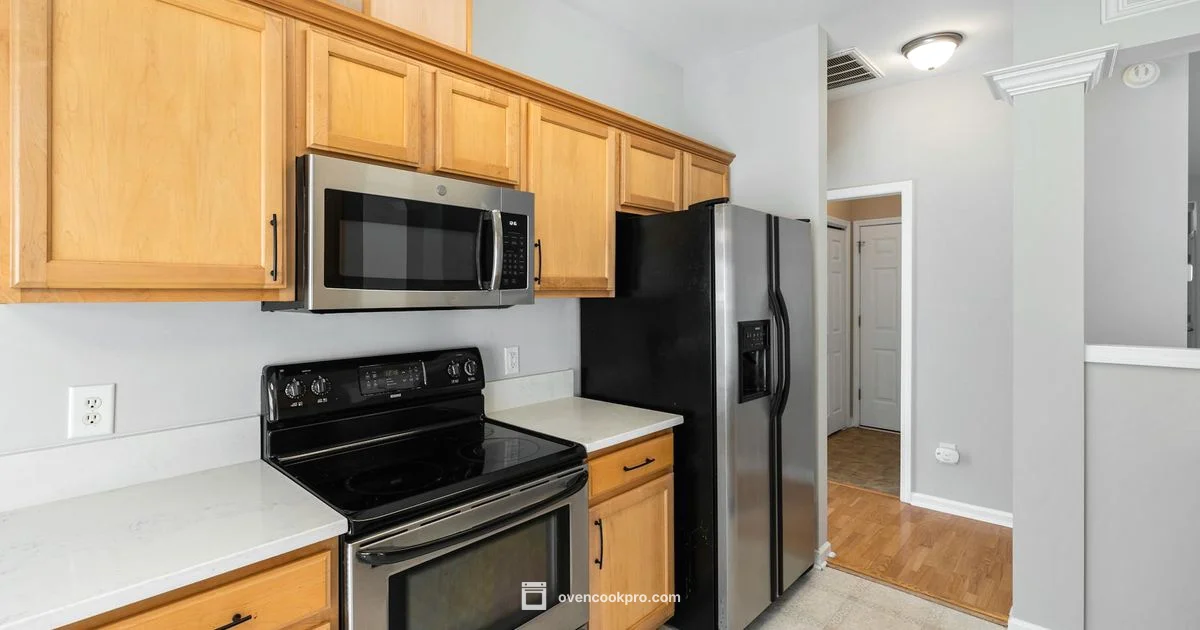

How to Install a Microwave Oven Over the Range: A Step-by-Step Guide

Steps

Estimated time: 90-150 minutes

1. 1

   Verify compatibility and space

   Double-check the microwave’s installation instructions for venting type, required clearances, and mounting bracket compatibility. Confirm the cabinet height, counter width, and the distance to the outlet. This prevents ordering mistakes and misalignment later. If adjustments to cabinets are needed, plan them now to avoid rework.

   Tip: Review the manufacturer’s template and compare with your specific cabinet arrangement before drilling.
2. 2

   Locate mounting points with a stud finder

   Use a stud finder to locate studs or solid framing where the bracket will anchor. Mark the exact points for bracket screws and ensure they align horizontally with the unit’s mounting holes. This creates a secure base that supports the weight of the microwave. Misaligned anchors can cause sagging or failure over time.

   Tip: Plan for a straight line across the wall to keep the microwave level once mounted.
3. 3

   Prepare electrical supply and disconnect power

   Turn off the circuit at the breaker panel that powers the outlet you’ll use. If the existing outlet is not on a dedicated circuit, consult an electrician about upgrading to a proper circuit per local codes. Do not work with live wiring. Keep a voltage tester handy to verify power is off before touching wires.

   Tip: Label the circuit you’re working on so future maintenance won’t accidentally cut power to other devices.
4. 4

   Install the mounting bracket or reinforcement kit

   Follow the microwave manufacturer’s instructions to attach the mounting bracket to studs or cabinet supports. Use appropriate screws and washers and ensure the bracket is level before tightening. A secure bracket prevents shifting when the door opens and during venting operation.

   Tip: Use a level to confirm bracket orientation before final tightening.
5. 5

   Mount the microwave onto the bracket and align

   With a helper, lift the microwave and engage it with the mounting bracket or rails. Slide into place and verify that the unit sits flush with the cabinet face. Recheck level and alignment, then secure any remaining fasteners according to the manual. Misalignment can cause uneven door closing and venting issues.

   Tip: Have a second person assist to avoid dropping the appliance.
6. 6

   Connect venting and ductwork

   For vented models, install the duct run according to the manufacturer’s directions, sealing joints and ensuring minimal duct height loss. For recirculating models, attach the exterior filter and ensure the vent path allows airflow back into the kitchen. Update duct caps or filters as required by your model.

   Tip: Avoid sharp bends in ductwork to optimize airflow and reduce noise.
7. 7

   Make electrical connections and restore power

   Connect the microwave’s power cord to the outlet if it’s a plug-in model; otherwise, have the wiring completed by a licensed electrician following local codes. Restore power and test the timer, door latch, and venting operation. Ensure there are no unusual sounds or heat during operation.

   Tip: Never force a plug into a tight outlet or modify the cord.
8. 8

   Final checks and alignment

   Open and close the door several times to check clearance and sealing. Confirm that the unit is level, the faceplate sits evenly, and there’s no interference with nearby drawers or cabinets. Document the installation for future service and warranty purposes.

   Tip: Take photos of the final setup for records and future reference.
